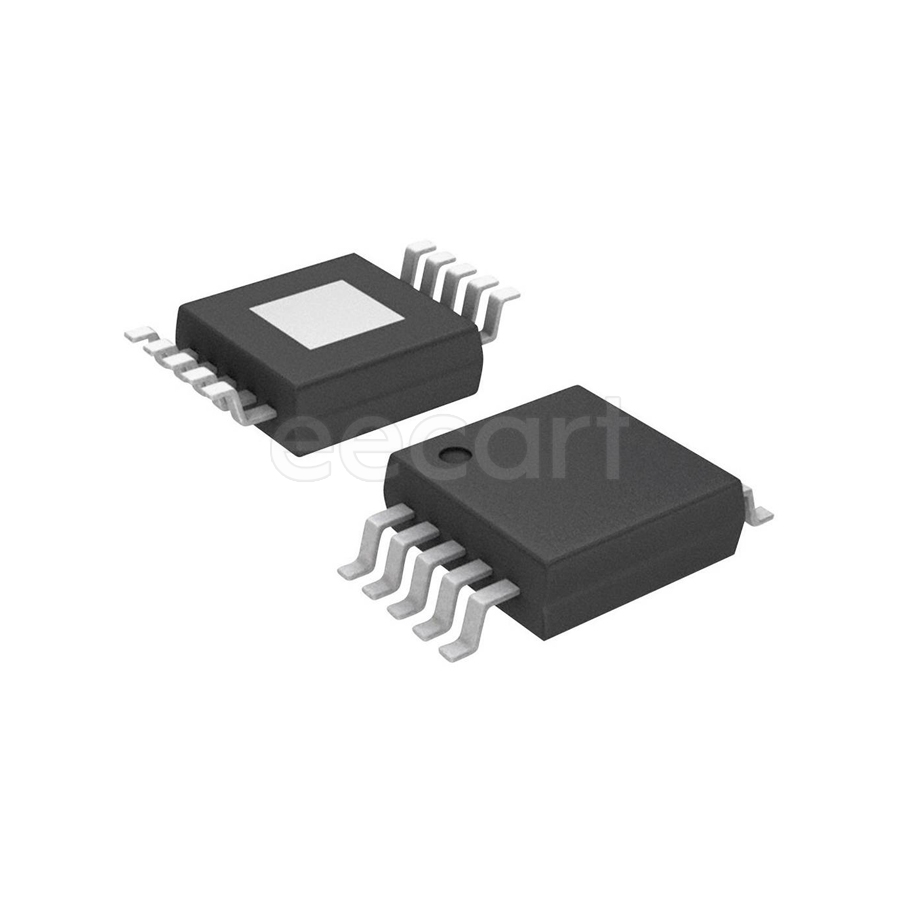

TS5A23157QDGSRQ1
Manufacturer:
Texas Instruments
Mfr.Part #:
TS5A23157QDGSRQ1
Datasheet:
Description:
Analogue Switch ICs VSSOP-10 SMD/SMT Number of Channels:2 10 Ω 57 ns 3.8 ns
| Parameter | Value |
|---|---|
| Length | 3 mm |
| Width | 3 mm |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 10 |
| Resistance | 10 Ω |
| Height | 1.07 mm |
| Packaging | Reel |
| Thickness | 1.02 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Polarity | Non-Inverting |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Number of Circuits | 2 |
| Bandwidth | 220 MHz |
| Lifecycle Status | Production (Last Updated: 2 days ago) |
| Max Supply Voltage | 5.5 V |
| Min Supply Voltage | 1.65 V |
| Ambient Temperature Range High | 125 °C |
| Number of Channels | 2 |
| Turn-On Delay Time | 57 ns |
| Turn-Off Delay Time | 3.8 ns |
| Operating Supply Current | 1 µA |
| -3db Bandwidth | 220 MHz |
| Propagation Delay | |
| Max Supply Current | 1 µA |
| High Level Output Current | 50 mA |
| Low Level Output Current | 50 mA |
| Number of Inputs | 2 |
| Supply Type | Single |
| Throw Configuration | SPDT |
| Number of Outputs | 4 |
| Nominal Supply Current | 1 µA |
| Drain to Source Resistance | 15 Ω |
| On-State Resistance | 15 Ω |
| Schedule B | 8542390000 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 days ago) |
| Logic Family | |
| On Resistance (RON) | 10 Ω |
| Configuration | 2 x SPDT |
Stock: 353
Distributors
pcbx
pcbxUnit Price$0.56333
Ext.Price$0.56333
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.56333 | $0.56333 |
| 10 | $0.45101 | $4.51010 |
| 25 | $0.41195 | $10.29875 |
| 50 | $0.37627 | $18.81350 |
| 100 | $0.34367 | $34.36700 |
| 300 | $0.31819 | $95.45700 |
| 500 | $0.29459 | $147.29500 |
| 1000 | $0.27771 | $277.71000 |
